Narrow Aisle Heavy Duty Pallet Racking System

Narrow Aisle Heavy Duty Pallet Racking System
Narrow Aisle Heavy Duty Pallet Racking System Narrow Aisle Heavy Duty Pallet Racking System

Large Image :  Narrow Aisle Heavy Duty Pallet Racking System

Product Details:
Place of Origin: China
Brand Name: TOP
Certification: ISO9001, FEM
Model Number: NARROW AISLE RACKING SYSTEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 project
Price: Negotiated price
Packaging Details: Packed with plastic films and wrap with strips
Delivery Time: 15-25days after down payment
Payment Terms: T/T, cash, L/C at sight, Western Union
Supply Ability: 1000T per month
Delivery Port:: Shenzhen/Guangzhou
Detailed Product Description
Name: VNA Racking Color:: Customized, Blue, Orange
Store:: Pallet Opertation:: Forklift
Height:: 5000 - 25000mm Capacity:: 800 - 2000kg Per Pallet
High Light:

steel racking systems

,

heavy duty pallet racks

,

cold rolled steel narrow aisle racking



Narrow Aisle Heavy Duty Pallet Racking System Worked in Stacked Forklift Operation





Quick Detail:



1 cold rolled steel

2 Finish: spray paint

3 Storing in Pallet, capacity from 800-5000KG per level

4 available for forklift works

5 wide works in warehouse storage system

6 Easy to assemble or dismantle





Description:



   Very narrow aisle pallet racking system, comes with upright frame, beam, support bar, loading capacity from 800kg to 4000kg per layer, maximum height 12m we worked, mainly specification almost same to heavy duty pallet rack;

   The difference between narrow aisle pallet and pallet rack, is channel width, normal pallet rack require 3.2 to 3.5M width for forklift operation, narrow aisle racking system is 1.8m to 2.2m as channel access. More space utilization than normal pallet rack.



photo show:

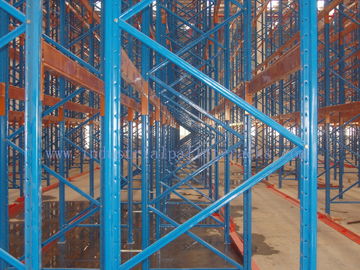

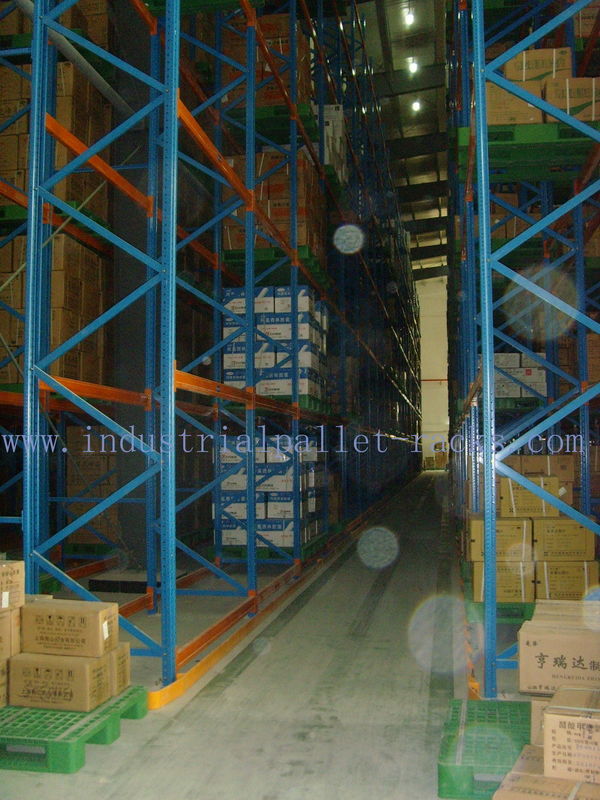

Narrow Aisle Heavy Duty Pallet Racking System 0





Applications:



Factory

Logistic cental

Industrial storage system

Warehouse storage system





Specifications:



Model

Narrow aisle racking system

Minimum Qty

One project

Price term

EXW, FOB, CNF

Loading capacity

800KG-5000KG per layer

Height

Up to 20M, customized

Length

1000-4000MM, customized

Depth

800-1200MM, customized

Color

Blue + orange, customized

Parts

Upright frame, Beam, Support bar

Layer

customized





Competitive Advantage:



 1. Pallet racking system, accessed and moved individually

 2. More space utilization coz small channel required than common pallet rack;

 3. Widely range of option to different industry and adjustable level space;







The key point to rack system:



1. pallet size as " length, width, height with cargo, weight of cargo"

2. premises layout measurement
