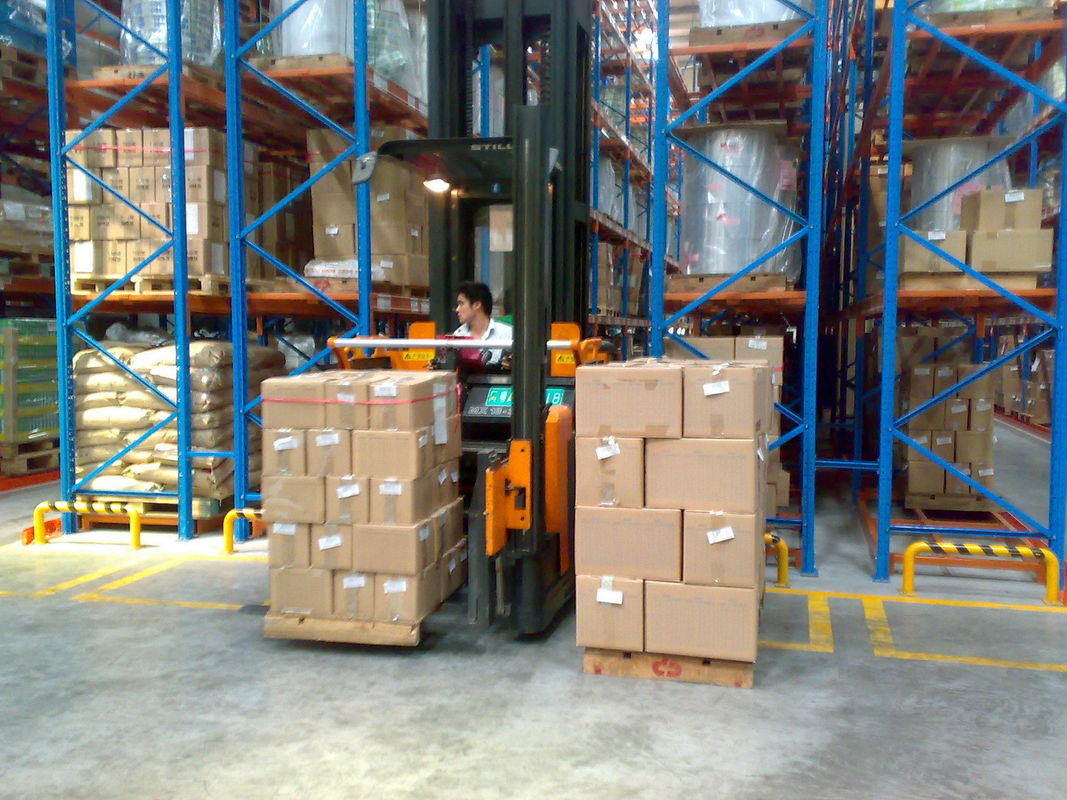

Logistic Cental Very Narrow Aisle Racking With Mast / Fork Head Rotation

Logistic cental very narrow aisle racking with mast / fork head rotation

Specifications:

Description:

   Very narrow aisle pallet racking system, comes with upright frame, beam, support bar, loading capacity from 800kg to 4000kg per layer, maximum height 12m we worked, mainly specification almost same to heavy duty pallet rack;

   The difference between narrow aisle pallet and pallet rack, is channel width, normal pallet rack require 3.2 to 3.5M width for forklift operation, narrow aisle racking system is 1.8m to 2.2m as channel access. More space utilization than normal pallet rack

    Ground guide rail special for three side stacking forklift movement, improve work efficiency.

Quick Detail:

1 cold rolled steel

2 Finish: spray paint

3 Storing in Pallet, capacity from 800-5000KG per level

4 available for forklift works

5 wide works in warehouse storage system

6 Easy to assemble or dismantle

.

Applications:

Factory

Logistic cental

Industrial storage system

Warehouse storage system

Competitive Advantage:

 1. Pallet racking system, accessed and moved individually

 2. More space utilization coz small channel required than common pallet rack;

 3. Widely range of option to different industry and adjustable level space;

The key point to rack system:

1. pallet size as " length, width, height with cargo, weight of cargo"

2. premises layout measurement
