Model: | AS/RS | System: | Storage System, Control System, Monitoring System Etc. |
---|---|---|---|
Storage: | Pallet / Rolling / Carton | Software: | WMS & REP |
Conveyor: | Pallet / Carton Conveyor | Height: | 12m To 40m |
Weight: | 250kg - 1200kg / Pallet | ||
Highlight: | 24m Height automated storage retrieval system,ISO9001 automatic storage retrieval system |

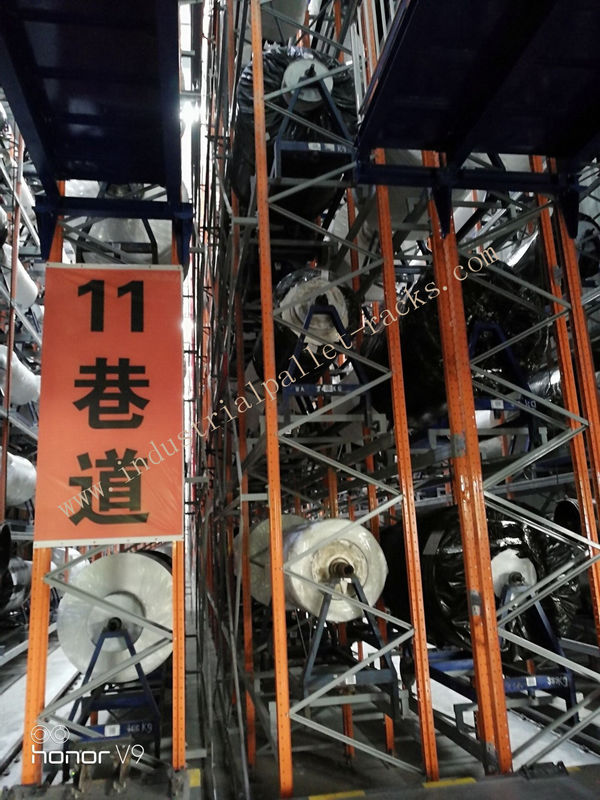

24 Meters Height Automated Storage And Retrieval System In Rolling Fabrics Management
Description:
Automated storage retrieval system, that is key component of integrated logistic systems. consist of storage system, conveyor system, sorting system, transporting system..., software is much more important key to connect equipment with operations of system like as WCS, WMS/TMS/DMS, ERP/SCM/3PL.
Comes with auto-control system, monitoring system, warehouse management system, racks, stacker crane, conveyor system, robotic palletizing system,
As a modern logistic warehouse, AS/RS maximize space, realize integration of logistic resource, optimize logistic process, shorten the operational time, improve efficiency and reduce cost, acheive logistic standardization and normalization while set up an automated warehouse, it guarantees cargoes with unified management, control and distribution. AS/RS is a highly automated and informationalized logistic system with storing/withdraw, in/out, demand forcasts.
Types of storage system:
1 Single-deep pallet storage system
2 Double-deep pallet storage system
3 Double-position pallet storage system
4 Multi-deep pallet storage system (channel storage system)
5 Flow rack storage system for pallets
6 AS/RS without pallet
7 Storage system for special weight and sizes
8 Mini-load storage system
Specifications:
single-deep | one or two mast SRM, 4000kg unit load, up to height 40m |
double-deep | telescopic fork 1250kg unit load, SRM load 2500kg, up to 35m |
double-position | two telescopic fork, one fork two pallet at each time |
multi-deep | shuttle work with SRM or fork truck |
Flow rack | rack with powerless roller, pallets move forward by gravity |
AS/RS without pallet | SRM directly handle coils, rolls, paper reels, etc |
special weight and sizes | one unit up to load 20T, height over 30m |
mini-load | high speed SRM handle trays, totes, and cartons, boxes, speed reach 360m/min |
Stacker Crane:
1. Unit-load stacker crane, maximum load under 4000kg, height range 10-40m
one or two columns structure, straight line, curve, switches running tracks,
running speet up to 300m/min;
2. Mini-load AS/RS, mainly handle plastic boxes and cartons, fast sorting and delivery, thick storage,
quiet operation, standard models or customized individually, up to 350kg load capacity, sole or various
operation, high speed.
Conveyor System
1 Pallet conveyor system works by chain conveyor and roller converyor; both are conventional devices
for system, mainly pallet movement, drive motor is famous and high quality, roller convery is drived by
chain or belt, consist of rollers, frames, legs, chain/belts, drive motor, gear reducer etc., good for heavy
load, high speed, frequently starting and braking. loading weight 250-4000kg
2 Carton conveyors and sorting system, suitable for cartons, bags, bins, bottles small and irregular
goods, easy to assemmble due to modular designed all parts, there are belt conveyor, roller conveyor
chain-slat conveyor, sorting system works with carton conveyor together, vertical picking system,
swiveller, shoe sorter, crossbelt sorter are mainly type of sorting.
Applications:
Factory
Logistic cental
Industrial storage system
Warehouse storage system
Competitive Advantage:
1. Improve space utilization
2. Easy to build advanced logistic system, improve the level of production management;
3. To accelerate the access of goods, reduce labor difficulty, increase production efficiency;
4. Reduce overstock and fund wastes, save labor
5. A significant of modern enterprise powerful display.
The key point to rack system:
1. cargo package as " length, width, height , weight "
2. premises layout measurement
3. as much as possible details for project requirement
4. send you inquiry by mail/skype in any way.
