Pallet Shuttle Racking System , High-Density Automated Storage Solution for Maximum Warehouse Capacity

Store More Pallets. Reduce Labor. Improve Warehouse Efficiency.

When warehouse space becomes limited and operational costs continue to rise, traditional pallet racking may no longer provide the efficiency required.

A Pallet Shuttle Racking System is a high-density storage solution that uses a motorized shuttle cart to automatically move pallets inside deep storage lanes — maximizing space utilization while reducing forklift travel and manual handling.

Designed for cold storage, FMCG, manufacturing, distribution centers, and 3PL warehouses, pallet shuttle systems deliver faster throughput, higher storage density, and improved operational safety.

Why Choose Pallet Shuttle Racking?

Traditional Warehouses Face Growing Challenges

❌ Limited warehouse space
❌ High land and construction costs
❌ Excessive forklift movement
❌ High labor dependency
❌ Difficult operations in cold environments
❌ Low storage density with conventional racking

A pallet shuttle system transforms unused warehouse volume into productive storage capacity.

How Does a Pallet Shuttle System Work?

The system consists of:

1. Shuttle Cart

A battery-powered shuttle moves pallets automatically inside storage lanes.

2. Deep Lane Racking Structure

Multiple pallets can be stored in depth, significantly increasing storage density.

3. Remote Control Operation

Operators control shuttle movement without entering deep rack channels.

4. Forklift Interface

Forklifts only transport pallets to the rack entrance — reducing travel distance and improving efficiency.

Loading Process:

Forklift places pallet → Shuttle automatically moves pallet → Storage position completed

Retrieval Process:

Shuttle collects pallet → Returns pallet to access point → Forklift removes pallet

Key Benefits of Pallet Shuttle Racking System

 Up to 80% Better Space Utilization

Compared with traditional selective pallet racking, pallet shuttle systems maximize warehouse volume by reducing aisle requirements and increasing storage depth.

 Faster Warehouse Operations

• Less forklift travel
• Reduced pallet handling time
• Improved loading and unloading efficiency

 Reduced Labor Dependency

Automated pallet movement allows operators to focus on higher-value warehouse activities.

 Ideal for Cold Storage

Designed for freezer and chilled warehouses where reducing door opening time and forklift movement is critical.

Benefits include:

✔ Lower energy consumption
✔ Less operator exposure to low temperatures
✔ Improved storage density

 Improved Safety

Operators do not need to drive forklifts deep into rack lanes, reducing collision risks and improving warehouse safety.

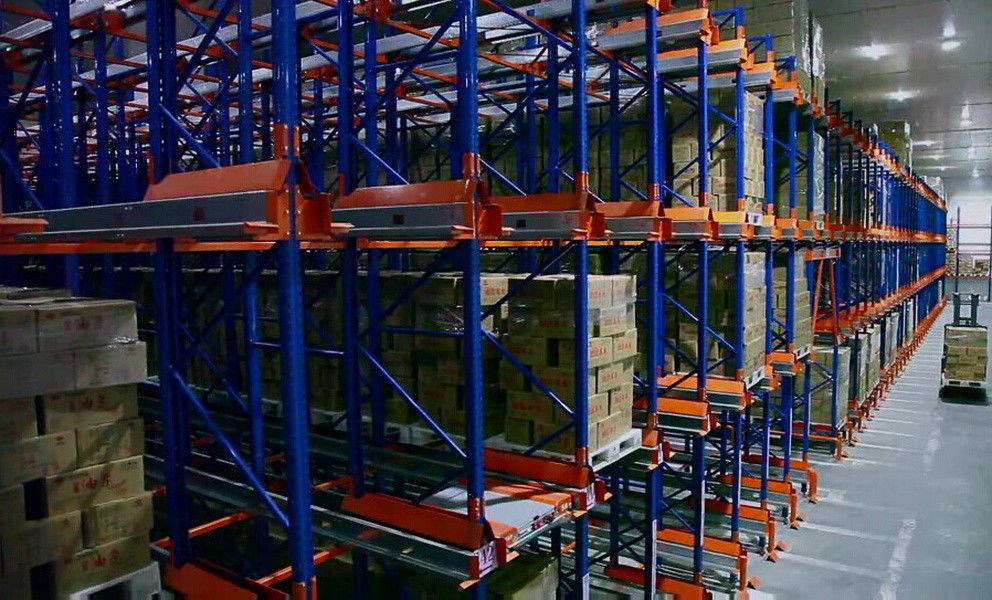

photo:

Pallet Shuttle System Applications

Cold Storage & Frozen Food

High-density storage where space and energy costs are critical.

FMCG Distribution Centers

Fast-moving products requiring efficient pallet handling.

Manufacturing Warehouses

Raw materials and finished goods storage.

3PL Logistics Centers

Maximum pallet capacity with flexible operation.

Beverage & Food Industries

High-volume pallet storage with repetitive workflows.

Pallet Shuttle vs Traditional Pallet Racking

Why Invest in a Pallet Shuttle System?

A pallet shuttle system is not simply a storage rack upgrade — it is an investment in warehouse performance.

By increasing pallet capacity and improving operational efficiency, companies can achieve:

✅ More pallets stored within the same building
✅ Lower cost per pallet position
✅ Reduced forklift operating costs
✅ Improved warehouse safety
✅ Better long-term scalability

Customized Pallet Shuttle Solutions

Every warehouse has different requirements.

Our engineering team provides customized solutions based on:

✔ Warehouse dimensions
✔ Pallet size and weight
✔ Storage capacity requirements
✔ FIFO / LIFO operation needs
✔ Temperature-controlled environments
✔ Forklift and handling equipment

From rack design to shuttle configuration, we create storage systems optimized for your operation.

Ready to Increase Your Warehouse Capacity?

📩 Contact our storage specialists for:

✅ Warehouse layout design
✅ Storage capacity calculation
✅ Technical proposal
✅ ROI analysis

GZTOP Storage System


Engineered Warehouse Storage & Automation Solutions
